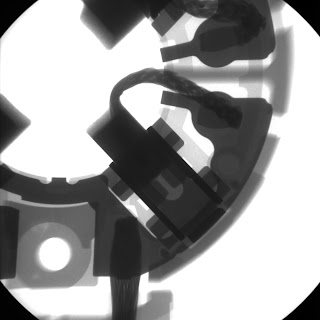

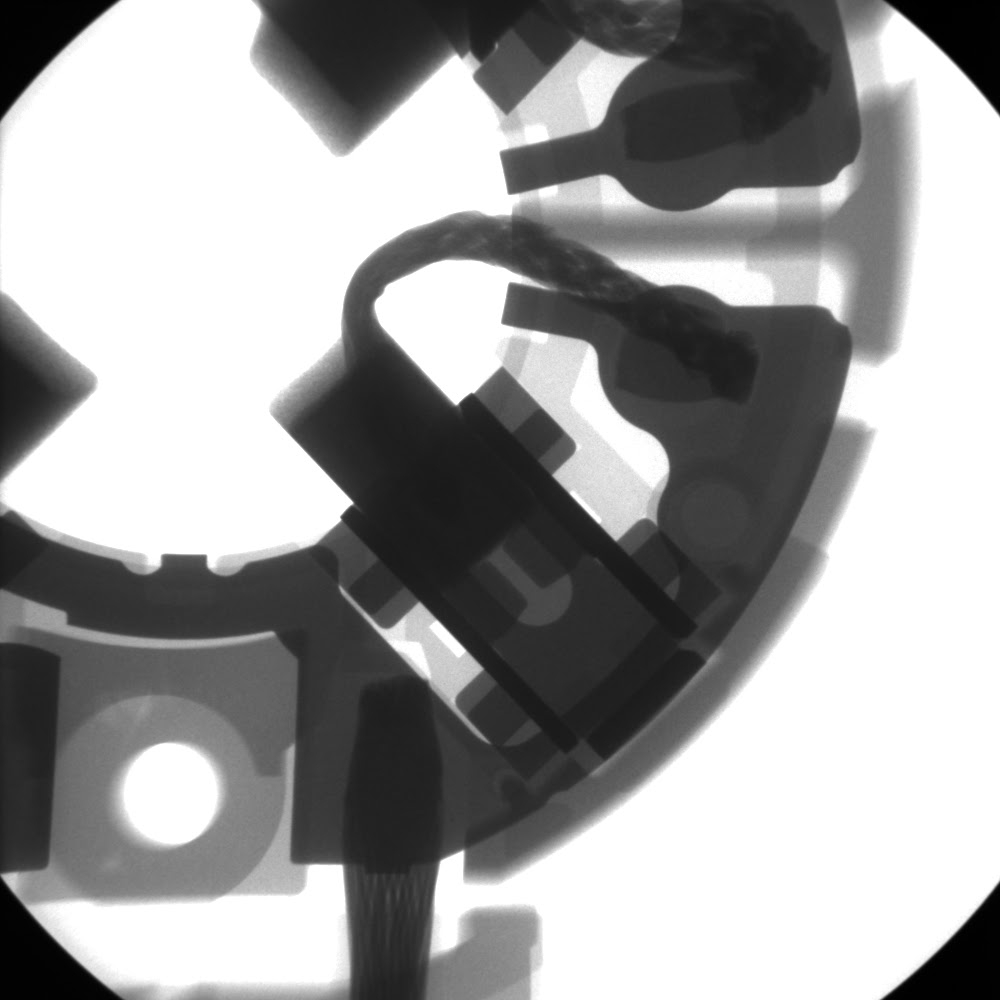

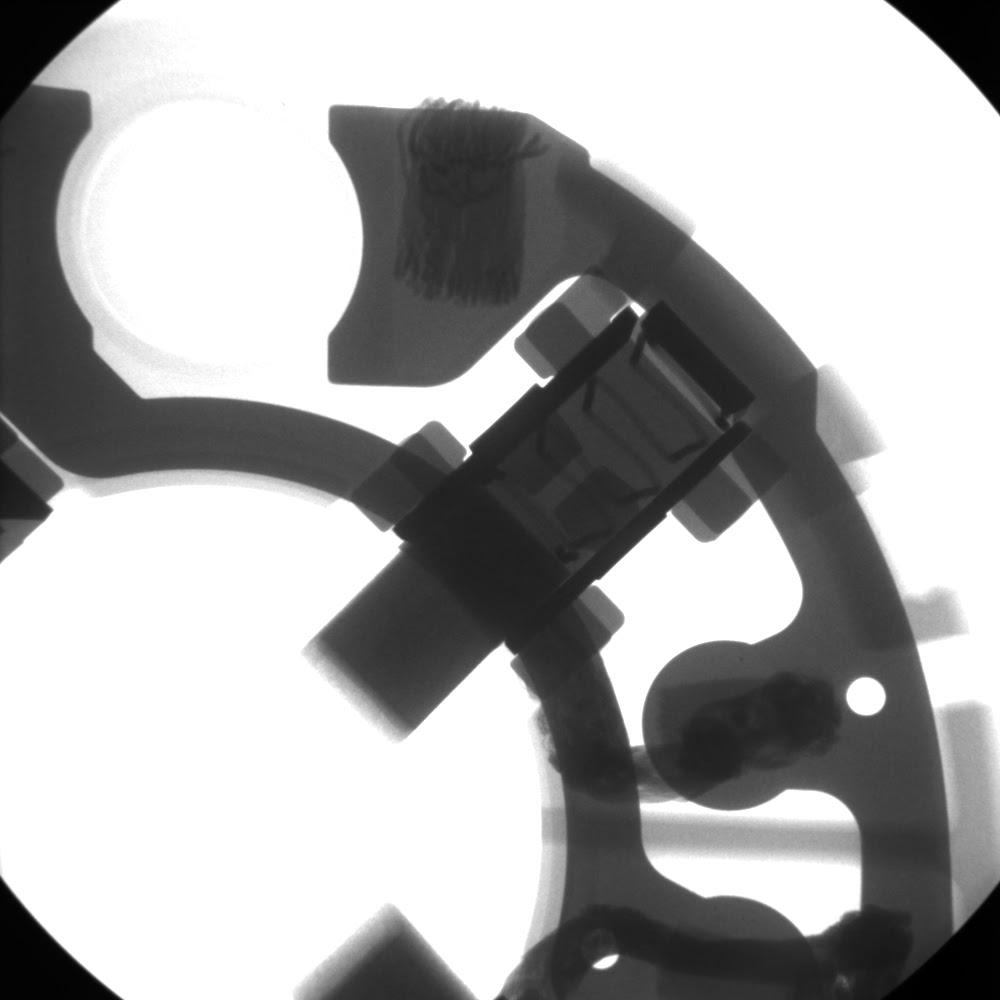

Motor X-ray Image - SEC X-ray Inspection System

Camera Module - 3D CT Images

Various X-ray BGA Images

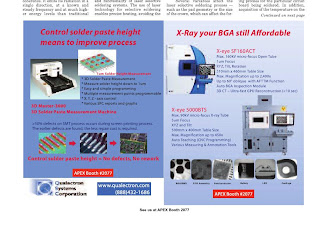

X-eye 5000BTS Advertisement on US Tech Magazine March Issue

http://content.yudu.com/A1rleq/U.S.TECHMAR11/resources/index.htm?referrerUrl=

X-eye 5000BTS at IPC APEX 2011 Exhibition in Las Vegas, USA

X-ray Application - PCB Blind Via Hole

Laser-drilled micro-via, or known as "blind-via" with via hole diameter around 150 microns can be visualized with 3D CT technology. With 3D CT visualization, the blind-via plating status can be observed without destructive section-view observation.

Blind Via Hole - Non-destructive 3D Section Image

Desktop X-ray CT System - X-eye DCT

High-Performance micro-CT System for laboratory NDT analysis

X-eye Desktop CT is compact X-ray 3D CT system. With micro-focus X-ray tube, the system provides the internal structure of component such as semiconductor packaging, small electronic parts (MEMS), or molded plastic components.

Key specifications

Suitable for sample size less than Φ40mm x 50mm
90kV Micro-focus closed tube equipped (5um focal spot size)
Flat Panel X-ray Detector
GPU based high-speed 3D Reconstruction (min. Reconstruction time < 10sec)
Dimension: 850mm x 600mm x 600mm
